Thursday, 31 December 2015

Little Gems in Seasonal Colours ~ Jack Geratic's 1/72 A4N1 and A5M4


Canadian modeller Jack Geratic has very kindly given permission to showcase here his excellent 1/72nd scale models of the Fujimi A5M4 and Choroszy Modelbud resin A4N1.


The Nakajima-built A4N was introduced into IJN service as the Type 95 Carrier Fighter in 1936, succeeding the A2N Type 90 which had been introduced in 1932. The A2N, designed by Takao Yoshida, demonstrated the influence of the Boeing 69B export model of the USN F2B-1. The Type 95 was essentially a re-designed and improved Type 90 but went through a prolonged development stage, entering service at a time when Mitsubishi were already testing the experimental prototype of an all metal monoplane that would gestate into the Type 95's successor the A5M "Claude".


The A4N was the last biplane fighter of the IJN and was finished in a standard scheme of aluminium dope, red painted empennage and blue-black cowling. The type saw brief service in China from August 1937 and Jack's superb model represents an aircraft from the light carrier Ryujo (龍驤 - 'Dragon Horse') flown by Lt(jg) Minoru Suzuki in which he claimed three aircraft shot down from a formation of 27 Chinese Curtiss Hawk and Boeing 281 (export P-26) fighters over Paoshan on the afternoon of 23 August.


From September 1937 the 12th Kokutai also operated Type 95s from Kunda airfield near Shanghai, engaged in ground support and air defence duties due to their limited range. The 12 Ku Type 95s were camouflaged on the upper surfaces, reportedly at first in a reddish-brown earth colour and later in a dark green and brown kumogata type camouflage scheme as revealed in photographs. From October to November 1937 12 Ku began conversion to the Type 96 A5M. The unit used a numeric tail code '3' painted in white at the top of the fin, with the three digit aircraft identifier below. Hinomaru and a white Army-type band were painted on the fuselage.


The Katakana character ホ (Ho) on the tail code of Jack's model identified the Ryujo and was repeated on the fuselage sides and in large letters above and below the wings.



Fine Molds Type 90 A2N1-2

For modellers who might be inspired by Jack's build but daunted at the prospect of assembling a tiny resin biplane Fine Molds released a neat injection moulded kit of the Type 95's similar looking predecessor the A2N1-2 in 2001 which has been re-released several times. Another one that is not often seen built but which can also be finished in festive silver and red.


Jack also built the Mitsubishi A5M4 'Claude' from the fine Fujimi kit and convincingly represented its legendary "gold" bento-box finish by mixing clear orange with aluminum and steel metalizers before spraying on. The result is superb. A final satin clear was applied overall. Masks for the Hinomaru were cut from masking tape using a circle compass cutter.


The model represents an aircraft on the carrier Soryu (蒼龍 - 'Blue Dragon') in December 1940, at a time when it was engaged in fleet training exercises between the occupation of northern Indo-China in September-October and the blockade of southern China in February 1941. Standard finish for the Claude at this time was natural metal with a red painted empennage and blue-black cowling.


The Mitsubishi A5M Type 96 was developed from the experimental 9-Shi Single Seat Fighter mentioned above in relation to the Type 95 and which features in the Studio Ghibli cartoon film  'The Wind Rises' directed by Hayao Miyazaki. This tells the story of Jiro Horikoshi, the designer of the A5M and A6M Zero fighters. Fine Molds have also released kits of the gull-winged 9-Shi in 1/72nd and 1/48th scales.


The Type 96 was the world's first operational monoplane carrier fighter and was flown extensively during the Sino-Japanese War in combat with both Russian and Chinese flown fighters, as well as in limited numbers during the first months of the Pacific War, being used as a fighter trainer afterwards. Many of the IJN's most famous Zero aces cut their teeth flying the Type 96 over China and it is a perennially popular modelling subject with the older but charming Nichimo kit in the same scale available since the 1960s.


Fujimi released a series of exacting A5M kits from 1995 featuring all major versions from the A5M2 to A5M4 in various boxings. Hobbyboss have also released a less accurate 'easy-build' kit of the A5M2 which has also been marketed by Doyusha in Japan.


With special thanks to Jack for kindly permitting these two beautiful models to be shared here. This will be the last blog of 2015 and I take this opportunity to wish a Happy New Year to Jack and to all friendly Aviation of Japan readers with very best wishes for 2016.

Image credits: Model photographs © 2015 Jack Geratic; Box art © Fine Molds














Thursday, 24 December 2015

A Short Story for Christmas

This intriguing short story has been submitted by long time reader but first time contributor Malcolm Hood. Wishing all readers of Aviation of Japan a very Merry Christmas and a Happy New Year.


Rufe Revelation: A Purple Passage

There’s an occasional feature in our local paper announcing 100th birthdays in the area.  Typically, it lists family and friends who joined the celebration, a line or two about the person’s career or profession, and sometimes a quote about the ‘secret to a long life.’ Of course for many centenarians, often a family member must provide this info.  This year I noticed one for a man named Noboru Fujimoto, who had obviously spoken on his own behalf.  The photo showed a man sitting beside an elaborate cake, with a well-creased smile and bright eyes, surrounded by staff members.  He had retired in 1988 from the Sherwin-Williams corporate offices in Cleveland and moved to southern climes to live with his daughter and escape the harsh Ohio winters there.  After service as a mechanic in the Japanese Naval Air Force from 1940 to 1945, he’d come to America from his hometown of Hakodate on Hokkaido in 1947, working for his passage, first on a tramp steamer, and then a Cunard liner.  He landed in New York and found a production-line job with Benjamin-Moore Paint in Brooklyn.  By 1950, he had saved enough to send for his wife and daughter to join him in America, soon moving the family to Cleveland after a job offer from Sherwin Williams.  With the death of his daughter in 2012, however, he had no remaining family.  The secret to his long life was shochu, “a staple of Japanese diet,” the article explained.

The nursing home was on the other side of town, but the first day I had some time I headed over.  I mentioned seeing the article on Mr. Fujimoto and asked if I might be able to visit him briefly.  I could tell this seemed a little strange to the person in charge, and who could blame her?  But she walked me down to his room.  “Someone is here to see you,” she announced.  He looked up and smiled.  “Yes?”  It was awkward.  But after I told him I had wanted to meet him after reading about him in the paper, he seemed amused, and said, “I have plenty of time.”  The nurse left us, and looking round the room I noticed little in the way of personal items.  There was a photo of two women who had to be his wife and daughter, some business awards and a framed collage of small photos with the faded colors of seventies and eighties era prints.  “Tell me about yourself,” he said.  He kept the flow going by asking additional questions along the way, and was both kind and surprisingly sharp.  Yes, I was married.  Yes, born here, rambled a few years but returned.  My father?  He was in the Navy.  Aviation Machinist Mate, First Class, retired a Chief Petty Officer.  “Ah.”  I thought he was about to rise to this, but then he said, “And your mother?”  When an attendant brought a tray in with supper, though he’d not said a word about himself, I knew it was my cue to depart.  He said, “Thank you, Ruth,” and then invited me to visit anytime.

And I did.  Somehow our conversations had never turned to his wartime experience.  It was not until my fourth visit that I noticed some familiar shapes barely peeking their dusty noses over the edge of a high shelf.  Old stuff, but a wonderful surprise and immediately recognizable: a Lindberg Betty; the ancient 1/75 Hasegawa Pete; and a Jo-Han Rufe.  I asked him if I could get them down and clean them up a bit for him.  “By all means.  I haven’t really seen them in quite a while.” Under all that dust, the Rufe was that Humbrol Mauve color, so easily recognized and now so completely discredited.  When cleaned, I could see they were still quite nice and carefully done.  Did someone make these for you, I asked.
“Yes.  I made these for me.”  After he retired, he had taken up model-building with enthusiasm, and these were all that remained of what once was a much larger group.  He asked to see the Betty after I had wiped it clean with a damp face cloth.  He shook his head.  “Lindberg.  Hopeless.”  I felt a true bond with this man!  Then the Pete was passed over for inspection.  “Fairly crude kit; good for its day, though,” he said.  Finally, the Rufe: he took off his glasses and held it by the float, one eye closed.  “This one is better. Not enough dihedral, but at least the shape looks like the airplane.”  One of the units he served in operated these, he said.  452 Ku.  “Even the Cleveland winters were never as cold as those months.”
“Nice airbrush work,” I said.  It was smooth as silk.
“Actually, they’re hand painted, he replied.  “Wet sanding between coats, then buffing.  My own mixes - except for the Suisen.  A company called Humbrol made a color that was right on the money.”
I reeled and clutched the bedside table for support.  “But that…that doesn’t…seem like a logical color to paint a combat aircraft,” I said.  “Oh, we felt the same, believe me,” he said.  “And technically it was against regulations. But it was an officer’s order.  And when an officer told you to do something in our Navy…”
It felt a little tawdry to press the point for the sake of laying an obscure bit of arcana to rest.  But I felt a duty of sorts; the continuing myth of the Purple Rufe has always perplexed and nettled me in an age of enlightened color research.  I’m known to be cranky about it.  But I kept my tone courteous. “You’re telling me that some of your floatplane fighters in the Aleutians were really painted that color?”
“Only three of them, actually, and only for a month or so,” he said.  It required several questions on my part, but essentially he told me this: while the unit was based in the Aleutians, a 452nd Ku Suisei element leader took advantage of an extended zero-viz-no-flying break to have his three worn aircraft better camouflaged for the environment than their pale weathered grey afforded.  As choices were limited in this new and distant theatre, crew chiefs were ordered to do so by mixing fresh grey paint with the red primer and blue-black colors on hand. Fujimoto related overhearing one pilot’s comment that the aircraft blended more effectively against the heavy overcast conditions so often found in the Aleutians, “particularly near dusk.”  One of the planes was lost with its pilot in combat.  The other two were destroyed in a williwaw that hammered them to pieces at their moorings, and their pilots were shipped back to Japan for reassignment.  In 2015 Fujimoto-san could not remember the flight leader’s name, or that of others involved.
Still I persisted.  I have read too many times of how unreliable the memories of veterans could be.  He had made the model over thirty years after these happenings, in the mid-seventies.  How could he be sure the Humbrol color was the right shade?  He said, “Two things.  I was in the business a long time, and for me, color is a trigger for memory, like fragrance is for most people.  Right before I built this, my late wife had bought a pair of shoes that struck me as the exact color we had painted those airplanes – though of course I never mentioned that to her.  Mauve.  And about the same time, the Humbrol set of Japanese colors came out, there it was.  The very same color.  If you know what you’re doing it’s an easy color to mix.  In fact, I introduced it into our Interiors line in the fifties.  But, still…the Brits!  How did they get on to it?”  He paused then, and looked at me with concern.  “Are you all right, friend?  You look ashen.”
I recovered my composure just as a young man in blue scrubs entered and said, “Time for physical therapy, sir.”  We said our goodbyes.  But in the doorway, I remembered.  “The second thing, sir.  What was that?”
“Oh.  Thirty-seven years at Sherwin and Williams.  ‘We Cover The Earth.’  Remember?”

I’m sad to report that this was my last sight of this gentle soul.  When I next visited about a month and a half later, I was told he had passed away peacefully in his sleep two nights before, after a cold had suddenly turned into pneumonia. One shouldn’t be surprised when a hundred-year-old man dies.  Yet it was a blow.  After giving me the news, the Head Nurse asked me if I could wait a minute and returned with a woman of about fifty who introduced herself as Ruth.  She asked me if I would walk down to his room with her.  “Mr. Fujimoto knew he might not make it past this one.  He left me a note that, in that case, he wanted you to have a couple of things.”  There was a box on his dresser, and after she placed it in my hands, we sat in chairs that had been pulled up by his bed.  I opened the flaps, and inside were the 1/72 Johan Rufe model and an unopened bottle of Iichiko Frasco Shochu.  “A staple of Japanese diet, eh?” I said.
“That newspaper guy couldn’t even spell it, so that’s what he was told.  But the answer is yes, if you asked Noboru.  And this is the good stuff.  For the last four years, whenever I was on nights, we each had a shot at 7:15.”
She was enjoying my surprise.  “I kept it in that cabinet up there, and I had the only key.  Soon after I started working here, he had asked if I would do him a favor, and bring him two shot glasses.  “Right,” I said.  “Keep it up, buster.”  The next night he asked me, ‘Did you bring the glasses?’  And the same thing, every night when I came in with his supper.  Every night he had a little different way of asking, made me laugh every time.”  She laughed lightly now, and like lightning through a window, I saw her face at twenty-five.  Lovely.  “He had a great sense of humor, didn’t he?”
I really hadn’t noticed, but I said yes, as I wanted to hear this.
“After about a week of this, I’m starting to weaken, you know?  I think, what could it hurt, he’s a sweet guy; it’s just a couple of glasses.  It’s not like he has a bottle of booze under the bed.  Then one night I put the food down, swing the tray over…and he hands me two twenties and says, “Make sure you get the heavy ones – only crystal.”
“Well, I’m stunned.  But still pragmatic.  I thrust those two bills back in his face and said,’Mr. Fujimoto, I like this job.  I need this job.  If anyone saw me take –‘
“Ruth, Ruth.”
 “He said it really softly, closed my hand over the money and said, “Have a little faith in me.” And to my own surprise I said, “Okay.”
“He said, ‘Good, good.  Who are any of us without faith?’”
“I didn’t think I could even find two shot glasses that together would cost forty bucks.  Wrong.  The ones I found that I really liked were Waterford, came in a little crushed velvet box and cost eighty two.  It wasn’t like me, but I bought them.  Ten minutes past seven, Brenda always takes her break, so I have the floor by myself til seven-thirty.  The next night I went in and put that velvet box in his hand.  You should have seen his face.  It was certainly worth forty-two dollars!  And I’ll be damned if he didn’t reach under the mattress and pull out a bottle.  “I’ve been waiting a long time to have a drink with you,” he said.  I asked him if this was sake.  “Shochu,” he said.  “Quite different.  Far better.”
“I know it sounds all wrong.  Unprofessional, unethical, unwise; but it was none of those things.  Somehow I knew it was safe as houses.  He had a wonderful confidence, and it was catching.  We never had more than one, either.  But he never offered the same toast twice; a romantic at heart, I think.”
“How did he get the bottle though?”
“I asked him the same thing finally.  One night, one of the orderlies had come in to tell him it was his last week on the job and to wish him well.  He said, ‘Frank, I need a favor.’  Frank loved the guy, and I’m certain he didn’t hesitate.  Noboru had never opened it.  It was a nightly ritual for most of his marriage, he said.  They had continued it after his wife could no longer care for him at home, and after she died, his daughter did the same.  He was the soul of discretion, and I’m not surprised that no one here ever noticed.  A toast, a drink, a kiss goodnight.”
I think Ruth saw the look on my face before I knew it was there, and more fool me.  Her voice was clipped.  “And he was always and ever the gentleman,” she said.
I thought that was end of our interview for a moment, but she needed to round things off, I think.  “I always picked up another bottle when the time came.  And his last week he asked me to pick up one for you; his treat of course, I can’t afford it.  Only a few weeks ago I asked him why he had never opened the one under his bed, because he adored the stuff.  He said, “Oh, I never drink alone.  That’s a slippery slope.  But it would have killed me before long.  Thanks to you, I lived to be a hundred.”  I think she had forgotten I was there for a minute.  If so, the spell was immediately broken when she clapped me sharply on the knee, leaned in, and said, “And if you ever repeat any of this to a soul, I’ll just tell everyone you’re lying through your teeth.”
“Ruth, I’m stunned to hear that.  Stunned but still pragmatic, as a friend of mine once said.  Because I think we can both agree that Noboru Fujimoto was a great man.”  We parted ways, and when I arrived home, I thought I’d take a look at the Rufe model under a good work light. What meticulous workmanship it showed; on careful inspection the tail-codes were hand-painted, and the skin panels varied in tone ever so subtly.  Even I had to admit it was a nice color.  There was a note in the bottom of the box.  “Have a little faith in me ~ N.F.”  It was written on the back of a 1959 Sherwin Williams paint chip - “Near Dusk.”
I opened the shochu, and though it was a new experience, I was sure Ruth had been right.  This was the good stuff.  Wow.  And I was glad for it, as for a moment there, I had wavered.  But after a couple of shots, and then another, my reason returned.  Fujimoto was indeed a remarkable man.  But as I’ve often said, veterans can remember things wrongly.  Worse, he was a romantic.  Worst of all, he had a sense of humor.  There was room for the model in my showcase, but one has to do the right thing.  I took a last look, closed the flaps, slid the box under the bed, slipped under the covers, and slept the sleep of the just.

In the interest of accurate color research,
Malcolm Hood

With special thanks to Malcolm for sharing this fictional short story with Aviation of Japan.

Image credit: Unknown artist, from 'Many A Northern Sadness', with permission

Wednesday, 16 December 2015

Mitsubishi Ki-46 'Dinah' on film

Hat tip to Aviation of Japan's Texas correspondent Mark Smith for providing a link to an interesting wartime film showing the Mitsubishi Ki-46-II Dinah in operation. Of note is the very pristine and semi-gloss finish of the paintwork - no salt treatment paint wear in evidence! Also apparent is the lighter tone of the ailerons, elevators and rudders. The film begins with a segment at a maintenance establishment (?) with a glimpse of the rare trainer variant and then shows operational aircraft with tail insignia attributed in different references either to the direct command reconnaissance unit of the 6th Air Army or the Dokuritsu Hiko Dai 82 Chutai (82nd Independent Air Squadron) - and usually associated with Ki-46-III variants.


Tail character 'Tsu'

Tail character 'Ru' in circle and command stripes

6th Air Army or 82nd Independent Air Squadron?

Image credits: mitupuu via https://www.youtube.com/watch?v=bcZGDKFUaZY




Monday, 14 December 2015

Ki-61/Ki-100 Aces


Osprey's Ki-61 and Ki-100 Aces (Aircraft of the Aces 114), authored by your host here, was finally published last month and the illustrator Ronnie Olsthoorn has kindly prepared examples of the cover art, selected profiles, drawings and notes to be published here. The highlight of the book for me was Ronnie's superb artwork which IMHO are the best Hien profiles so far created. Ronnie went to great lengths to get the details correct and although "never trust a profile" is another modelling cliché I found his meticulous conclusions in the interpretation of photographs and data both compelling and convincing.  It is a privilege to have collaborated with Ronnie and to have shared his methodology and expertise up close and personal once again.

Ki-61-I Otsu of 78th Sentai, Wasile, Halmaheras in early 1944 with tail character 'Wa'

Ki-61-I Tei '24' of Capt Teruhiko Kobayashi, 244th Sentai Hombu, Chofu, Japan, February 1945

Ki-61-I Tei '24' of Capt Teruhiko Kobayashi, 244th Sentai Hombu, Chofu, Japan, March 1945

Although recent profiles of 244th Sentai commander Kobayashi's aircraft have been depicted more recently with red command stripes Ronnie decided to depict them as blue in accordance with earlier representations, for sound reasons with which I concurred. We'll be featuring Kobayashi's Hiens in more detail on the blog next year. The third profile above corrects the profile in the book by restoring the red 'diving Hien' to the victory tally.

Ki-61-I Hei serial '3294', 56th Sentai, Itami, Japan, December 1944

Ki-100 of Maj Yohei Hinoki, 2nd Daitai, Akeno Kyodo Hikoshidan and 111th Sentai, Akeno, Japan, July 1945

Ki-100 serial '16153' of 3rd Chutai, 59th Sentai, Ashiya, Japan, October 1945

The 59th Sentai Ki-100 above is depicted with the correct spanwise stripes on the tailplanes for the first time. These were always an integral part of this unit's tail insignia but have been omitted in all previous representations. Ronnie's approach to creating each profile is exemplified by his annotated notes to the Ki-61-I Tei '62' of Capt Kobayashi:-


Unfortunately the size of reproduction required by the Osprey format means that the exceptional detail of the original artwork cannot be fully appreciated. These two close-ups provide examples:-



For the eagle-eyed Ronnie has also provided corrected drawings for the Ki-100 - below. They are identical to the drawings in the book, except that they omit the tail gear inspection hatch, which was only present on the starboard side of the Ki-100. Unfortunately, this error was noticed only after the images were submitted for publication. Please also note that the photo caption on page 74, top, is also incorrect and Hien '71' is a factory painted Tei rather than a depot/unit painted Otsu. Other gremlins crept in with some of the photo credits:-

Page 70 (top) - Yasuho Izawa
Page 71 - Yasuho Izawa
Page 74 (top) - Kikuchi Collection via Hiroshi Umemoto

All references to Horoshi Umemoto in the book should read as Hiroshi Umemoto. My apologies for these unfortunate errors which should be corrected in re-published editions.



With special thanks to Ronnie for permitting the publication of these beautiful images at Aviation of Japan.

Image credits: All © Osprey Publishing/Ronnie Osthoorn (www.aviationart.aero)





Tuesday, 17 November 2015

Al DuVal's Collection ~ Update


Back in February Aviation of Japan's Texas correspondent Mark Smith wrote a moving eulogy to his friend Al DuVal whose impressive collection of 382 1/48th scale model aircraft featured many Japanese subjects. At that time the fate of this fine collection was unknown but subsequently the Frontiers of Flight Museum in Dallas, Texas offered to provide a permanent home for it.


Gary Seidel, the lead volunteer at the museum model shop, has now written to say how very happy the Museum was to acquire Al's collection and that the Curatorial Committee has now completed the installation of the showcases, registering and placing of the models. The lighting is still to be installed and a brief dedication is planned for 13 December with more details to follow. Gary kindly sent these images of the installation. It is a delight to see Al's fine collection permanently preserved and on show like this and a fitting memorial to a passionate modeller. Congratulations to Frontiers of Flight Museum and all those who helped to make it happen.

Image credits: © 2015 Gary Seidel, Frontiers of Flight Museum.

Friday, 30 October 2015

Notice


The dead hands of the EU Bureaucracy and Corporatism are starting to intrude into the freedom to blog unencumbered as an individual. Rather than jump through their combined conspiratorial hoops I shall therefore be removing the Amazon links from which I derive little or no benefit anyway. Somehow those two bloated leviathans have managed to skew the relationship between the service they provide and the customer. The British government, rather like its EU masters, is suffering from the delusion that we the people have become employees in a corporation that they control or pupils in a (primary) school that they run, and subject to their ever increasing, intruding and tedious rules and regulations, codes of behaviour and general nannying.

Image credits: for the freedom to blog

Wednesday, 28 October 2015

Dan Salamone's 1/48 Airfield Vehicles


Dan Salamone has very kindly shared these images of two of his recently completed 1/48th scale Japanese airfield vehicle projects.

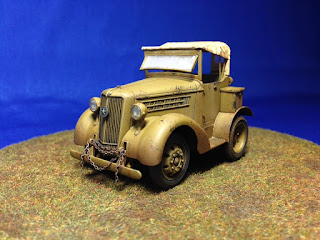

The Army Isuzu TX40 airfield tug (above) was converted from the Hasegawa 1/48 cargo truck version. Dan started this project back in 2012, and based it on an image showing two of these vehicles on the tarmac at Hamamatsu airbase towing Ki-21 bombers.



The conversion involved narrowing the cab and bench seat and scratch building the rear fenders, left door, equipment bins on the fenders and rear of the vehicle, as well as shortening and detailing the frame and tow hitch.



Dan also scratch built the roof by building up a frame with plastic rod and strip, then covering it with tissue soaked in white glue.



The vehicle was then airbrushed with a custom mix for IJA khaki, using Vallejo acrylics. The roof was sprayed with Tamiya paint, weathering was done with Vallejo washes and artist's oils. The final clear coat was Gunze matt lacquer. The result is an excellent and unique model of an interesting vehicle, although Dan hasn't indicated whether he plans to build a 1/48th 'Sally' bomber to go with it!



The splendid looking IJN fuel truck model (above) was made from the 1/48 Hasegawa Isuzu Type 97 kit, built pretty much from the box. Dan covered the roof with tissue soaked in white glue to give the appearance of canvas. The model was finished with Tamiya paints from spray cans, weathered with Vallejo acrylics and artists oils.



Dan noted that IJN fuel trucks usually displayed a light colored lateral band around the fuel tank and comparing those with aircraft in photographs, concluded that the band was most likely yellow.



Some units displayed numbers on the tank as well, with the first number identifying the vehicle and the second number indicating the octane of the fuel it carried. IJA fuel trucks did not show the colored bands or the numbers, but almost every image Dan has seen shows a canvas tarp covering the fuel tank.



This particular vehicle is patterned after images of trucks used by the 302nd NAG, based at Atsugi.

With special thanks to Dan for sharing these images of his superb pair of airfield vehicles. An inspiration.

Image credits: All photos © 2015 Dan Salamone
